Structural characteristics

B3000 Series

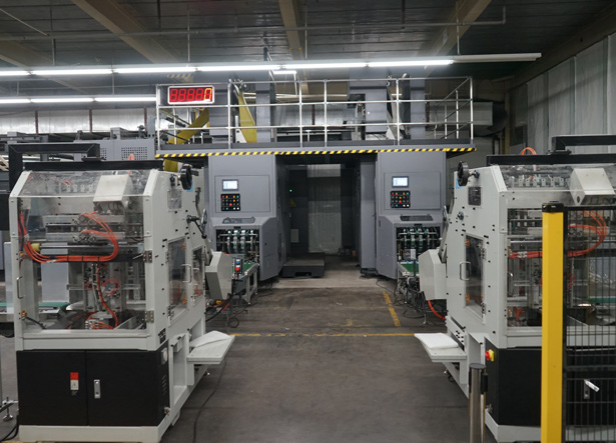

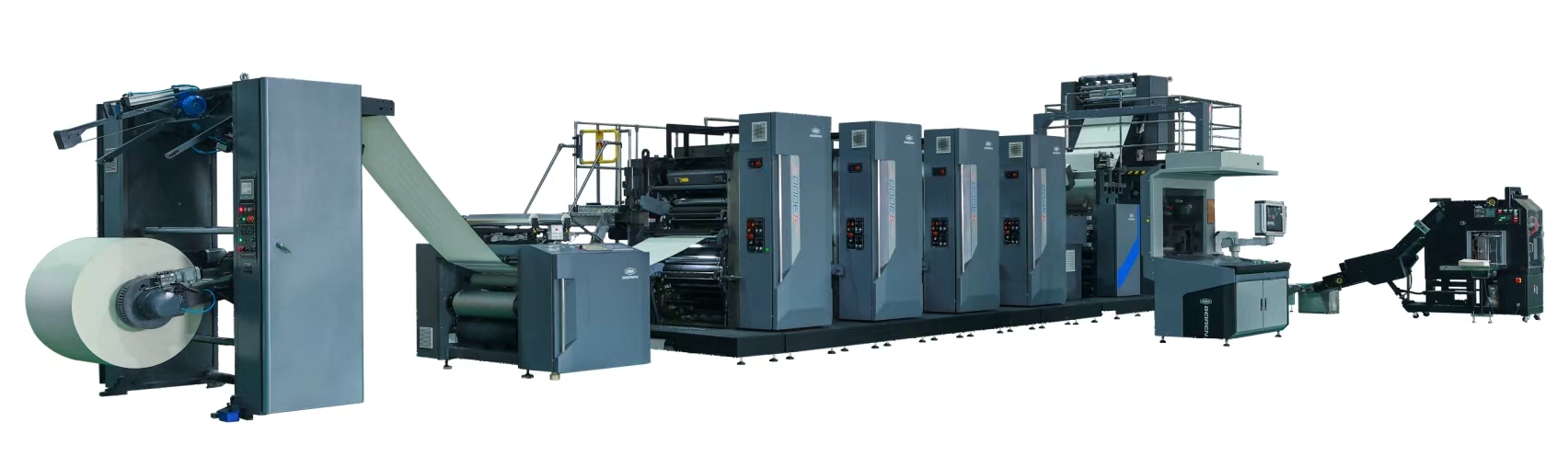

The BEIREN 3000 Series Web Offset Commercial Press, built upon a high-end commercial rotary printing architecture, is a meticulously developed, three-year engineered intelligent, eco-friendly, and high-performance commercial printing solution offering ultra-cost-efficiency.

It delivers versatile printing capabilities across a wide range of substrates, including offset paper, coated paper, and art paper,etc.

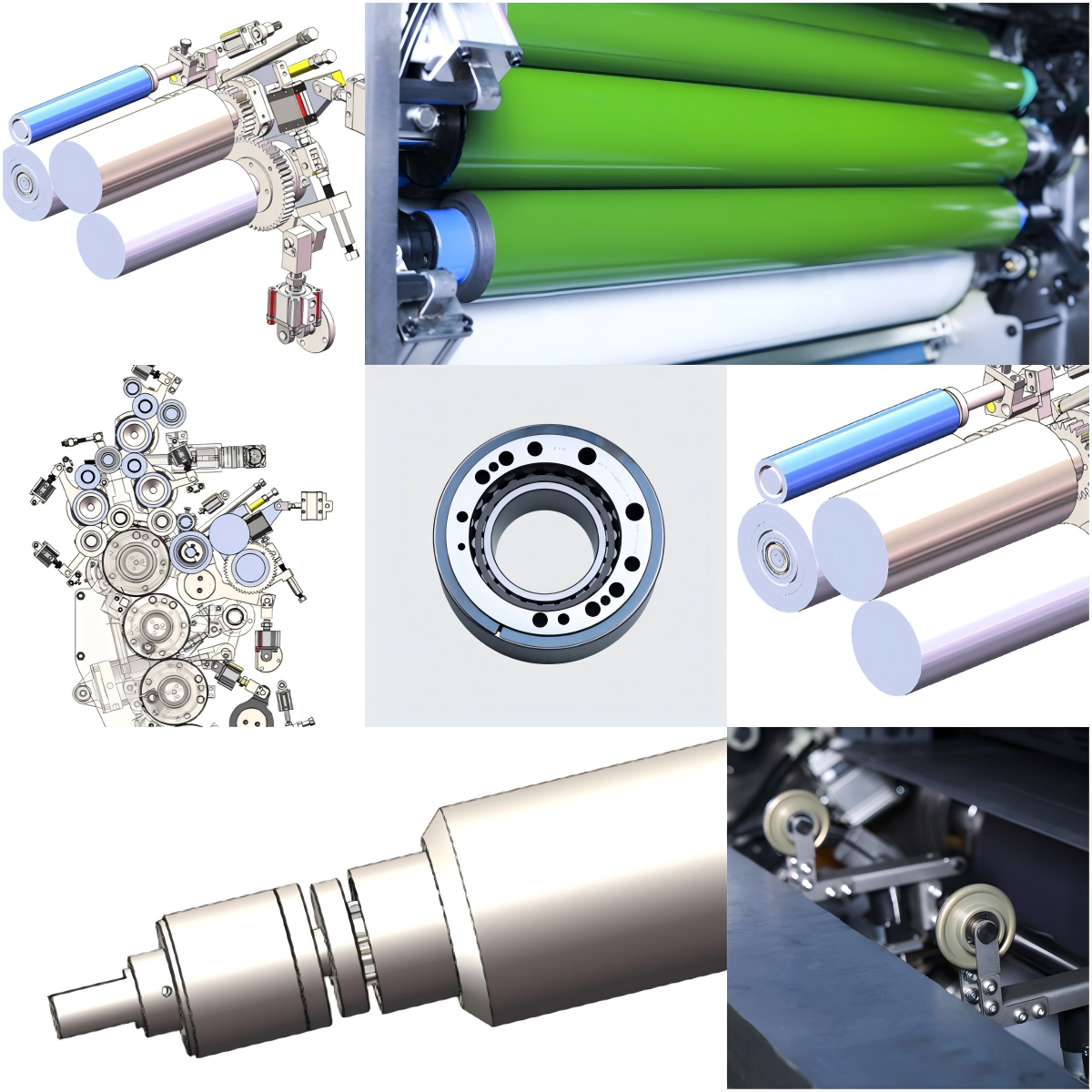

Print Unit

Key Advantages Summary

Stable Precision & Ghost Artifacts Elimination: Dedicated bearings and self-oscillating plate rollers maintain pressure stability and eliminate ghosting artifacts.

Superior Ink-Water Balance: Integrated dampening with dual-motion rollers ensures even water distribution and consistent dampening during adjustments.

Enhanced Color Vibrancy: Anti-streaking wheels and bridge rollers optimize ink-water control, reducing defects and improving color saturation.

Folder:

Superior Print Quality: Advanced roller layout and self-oscillating mechanisms ensure ghosting elimination, even ink/water distribution, and sharp graphics.

Stable Ink-Water Balance: Integrated dampening with dual-motion rollers and automatic pressure tracking enables reliable humidification and consistent color control.

High Precision & Efficiency: Electric adjustment components and bridge rollers enhance operational accuracy, reduce waste, and support high-quality output.

technical parameter

Technical Parameters

Model	B3000	B3000S	B3000L MAX
Max.Idle Running Speed（Iph）	45000
Max. Printing Speed (Iph)
Max.Web Width（mm)	820	890	890
Max.Printing Area(mm²	536×800	606×880	614×880
Book Size For 16mo(mm)	184×260	210×297	210×297
Book Size For 32mo(mm)			148×210
Book Size For 24mo(mm)			182×196
Paper Weight（g/m²)	40-128		28-128
Cutoff（mm）	546	616	624
Folding Format	8mo,16mo	8mo,16mo	8mo,16mo,32mo,24mo
Transmission Mode	shaftless
Printing Plate Axial Adjustment（mm）	±2.5
Printing Plate Circumferential Adjustment（mm）	±1.5
Cocking Adjustment（mm）	±0.3
Registration Accuracy(mm)		≤ 0.1
Folding Accuracy（mm）		±0.6
