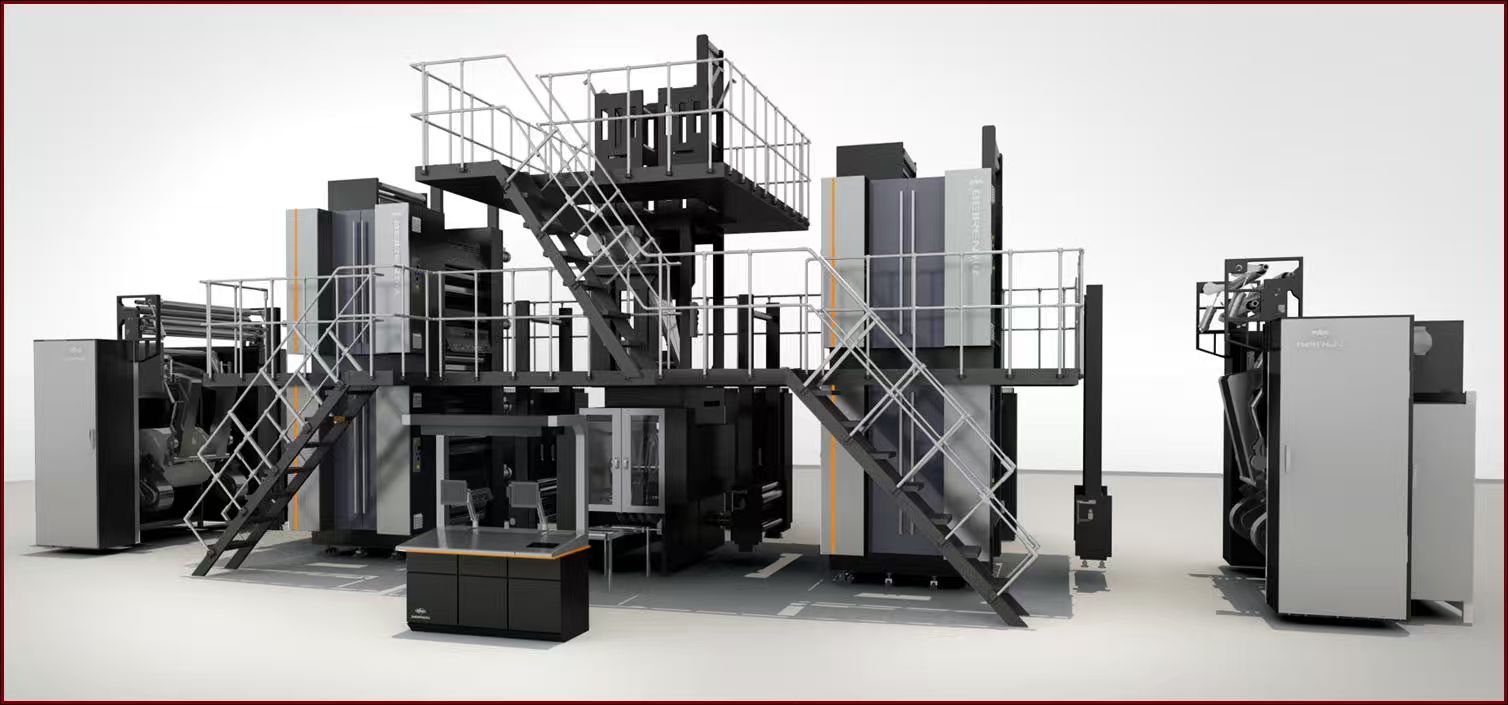

BEIREN 50A Web offset newspaper press

0086-15691768703
0086-18600979358

Consultation

Copy link

Collection

BEIREN 50A Web offset newspaper press adopts an advanced modular design concept, with core modules including:

1. High-speed Automatic Paper Splicer: Guarantees continuous, stable paper feed and minimizes production downtime

2. Dual-Sided Four-Color Tower Printing Unit: Achieves Precise Registration

3. Folder: High-Precision folding enhances final product quality

Users can flexibly combine modules based on production scale and development needs to build an efficient and scalable newspaper printing production line.

Structural characteristics

Main Features

1.The arrangement of the printing cylinders is in a straight line, which can effectively reduce mechanical shock and improve the quality of printed matter.
2.The printing cylinder adopts a three-ring bearing structure specially designed for ZYS high-precision printing machines.
3.The blanket cylinder employs a 6mm narrow-groove reel-type blanket mounting system, expanding the effective printing area.
4.The folder adopts the roll-cut folding method, ensuring high folding registration accuracy. It is a dual-purpose model compatible with both octavo (8mo) and sextodecimo (16mo) formats for books and newspapers.

technical parameter

Technical Parameters

Model	50A
Max.Web Width（mm)	860
Max.Printing Area(mm²	535*840
Max Web Diameter(mm)	1270
Cutoff（mm)	546×860
Max.Speed（Iph）	50,000
The maximum speed of the machine depends on the printing adaptability of consumables such as paper and ink, and also on good operation
Folding Format	8mo,16mo,
Paper Wight（g/m²)	45 –80
Printing Plate Axial Adjustment（mm）	±2
Printing Plate Circumferential Adjustment（mm）	±2
Power Of the Printing Tower Motor(kw)	200
Power Of the Printing Folder(kw)	100
